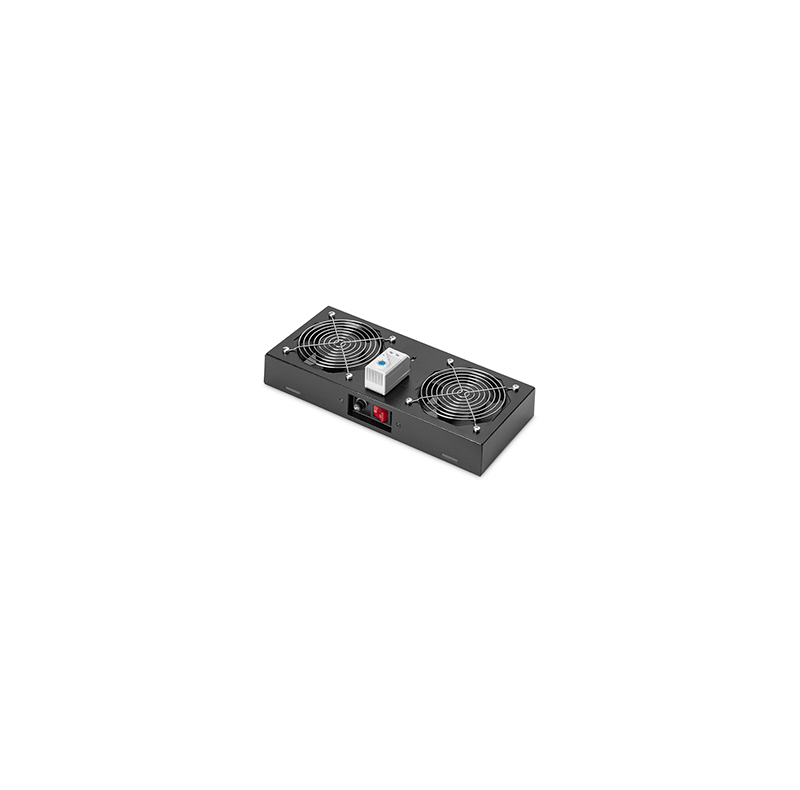

VENTILATORSKI PANEL SA 2 VENTILATORA DN-19-FAN-2-WM-T-SW

MODEL : DN-19-FAN-2-WM-T-SWROOF VENT. UNIT, WALL MOUNTING CABINETS 2 FANS, THERMOSTAT, SWITCH, BLACK (RAL 9005). THE DIGITUS 483 MM (19”) EQUIPMENT IS MADE FOR HIGH DEMAND IT-INFRASTRUCTURE SOLUTIONS, PRODUCED ON GERMAN STANDARDS. THE ROOF VENTILATION UNITS ARE SUITABLE FOR ALL MOUNTED WALL MOUNTING CABINETS OF THE UNIQUE SERIES AS WELL AS FOR ALL UNMOUNTED NETWORK- AND SERVER CABINETS (-EC). THE INSTALLATION IN THE ROOF MODULE OF THE CABINET CAN BE DONE QUICK AND EASY. A SWITCH AS WELL AS AN ADJUSTABLE THERMOSTAT PROVIDE BEST OPTIONS FOR CUSTUMIZATIONS. THE MODEL IS AVAILABLE IN STANDARD COLOR GREY (RAL 7035) AND BLACK (RAL 9005), EQUIPPED WITH TWO FANS.TECHNICAL DETAILS : HOUSING MADE OUT OF STURDY STEEL SHEET, FANS WITH GRID COVERS, NOISE LEVEL: 47 DBM, 2 FANS ANCL. THERMOSTAT, ADJUSTABLE FROM 0 °C UP TO +70 °C, ON/OFF SWITCH, AIR FLOW: 4.6 M3/MIN., 1.8 M CABLE WITH CEE 7/7 (TYPE-F) PLUG, MOUNTING METHOD: SCREW MOUNTING, COLOUR: BLACK, WIDTH: 345, HEIGHT: 90, DEPTH: 150, RAL-NUMBER: 9005, VOLTAGE TYPE: AC, SUITABLE FOR 19 INCH RACK MOUNTING: NO, NUMBER OF FANS: 2, EMC-VERSION: YES, DEGREE OF PROTECTION (IP): IP20, WITH FILTER: NO, RATED POWER: 13.8, ROOF VENTILATOR: YES, BUILT AS SLIDE-IN VENTILATOR: NO, VOLUME FLOW, FREEBLOWING: 276, AIR CIRCULATER: NO, WALL BUILD IN: NO, OPERATING VOLTAGE AT AC 50 HZ: … 240, OPERATING VOLTAGE AT AC 60 HZ: … 220, OPERATING VOLTAGE AT DC: … 48
