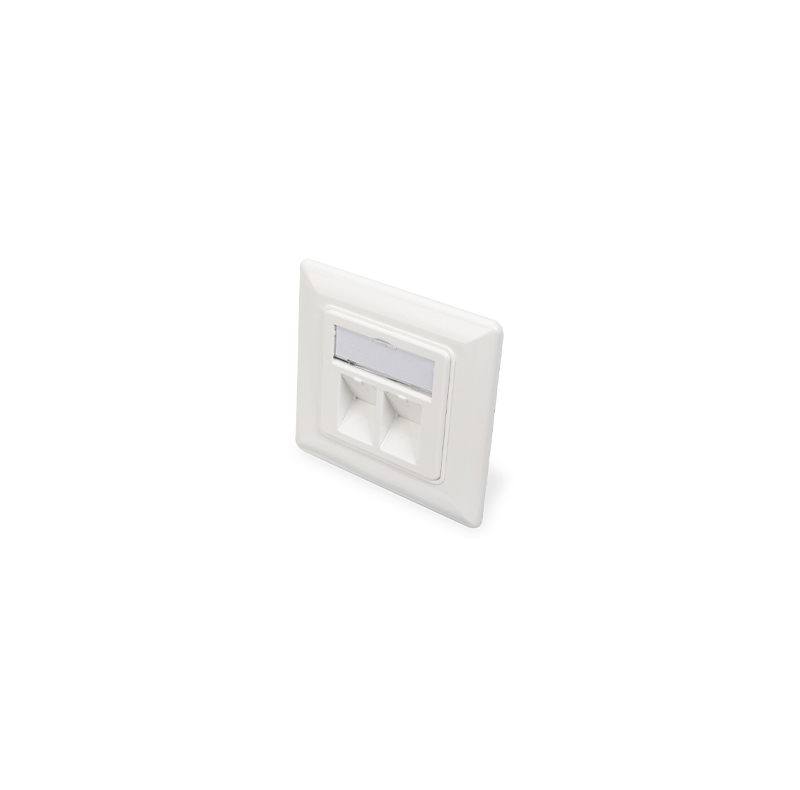

UTICNICA MODULARNA UZIDNA 2 PORT KOSA DN-93801-1

MODEL : DN-93801FACEPLATE FOR KEYSTONE JACKS, 2X RJ45 DUST COVER, 80X80 + CENTRAL PLATE, PURE WHITE. FUTURE-ORIENTED STANDARDS AND HIGH-END QUALITY FOR YOUR NETWORK. THE DIGITUS® FACEPLATES ARE SUITABLE FOR THE CONNECTION OF ALL DIGITUS® KEYSTONE MODULES. INCLUDED DUST PROTECTION SHUTTERS PROVIDE A PERFECT PROTECTION. THEIR CONNECTION WAY OF THE MODULE IS 45° VERTICAL (GERMAN AND BRITISH LAYOUT) OR 90° HORIZONTAL (FRENCH LAYOUT).TECHNICAL DETAILS : LAYOUT KEYSTONE ENTRY: 45° OUTLET, AREA OF APPLICATION: CAVITY SOCKET, TRUNKING, SURFACE MOUNT BOX, NORMS: ISO/IEC 11801 3RD ED., EN 50173-1, EIA/TIA 568-CGENERAL PROPERTIES: SUITABLE FOR INSTALLATION IN TRUNKING, FLUSH AND SURFACE MOUNT, CENTRAL GROUND CONNECTION, INTEGRATED DUST COVER, PLASTIC LABEL FIELD, DESIGN COMPATIBLE TO CURRENT SWITCH RANGES OF SWITCH MANUFACTURERSTECHNICAL PROPERTIES: WALL OUTLET MATERIAL: DIE-CAST METAL, CENTRAL PLATE MATERIAL: ABS UL 94V-0, FRAME MATERIAL: ABS UL 94V-0, SURFACE MOUNT BOX MATERIAL: ABS UL 94V-0PHYSICAL PROPERTIES: OPERATION TEMPERATURE: -20° C TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C), MOUNTING METHOD: FLUSH MOUNTED (PLASTER), ASSEMBLY ARRANGEMENT: CENTRAL COVER PLATE, COLOUR: WHITE, HALOGEN FREE: YES, WITH HINGED LID: NO, UTILIZATION: MODULAR JACK, STRAIN RELIEF: NO, MATERIAL QUALITY: OTHER, IMPRINTABLE LABEL: WITH INDICATION PLATE, MATERIAL: PLASTIC, TYPE OF FASTENING: MOUNTING WITH SCREW, LUSTER TERMINAL: NO, RAL-NUMBER (AKIN): 9003, WITH DUST COVER: YES, WITH IMPRINT: NO, SUPPORT RING: YES, TRANSPARENT: NO, TYPE OF SURFACE: BRILLIANT, SUITABLE FOR DEGREE OF PROTECTION (IP): IP20, WIDTH OF DEVICE: 80, HEIGHT OF DEVICE: 80, DEPTH OF DEVICE: 24.42, NUMBER OF MODULES (MODULE SYSTEM): 2
