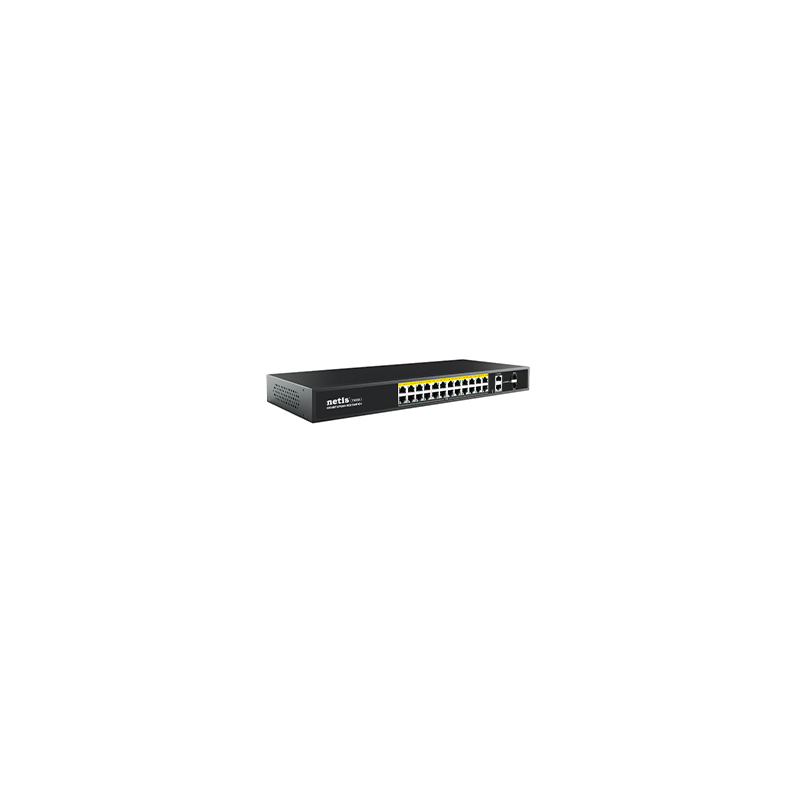

SWITCH POE 24 PORT 10/100 + 4 PORT GIGABIT + 4SFP 320W NETIS P124GH

MODEL: P124GHNETIS P124GH IS A 30 PORTS STANDARD POE SWITCH THAT PROVIDES 24 FE POE PORTS , 4 GIGABIT UP-LINK PORTS AND 4 SFP FIBER PORT. PORTS 1~24 FEATURES POE POWER SUPPLY CAPABILITY AND CAN BE USED AS POWER OVER ETHERNET DEVICES. THE POWER SUPPLY PORT CAN AUTOMATICALLY DETECT AND RECOGNIZE THE POWERED DEVICE THAT COMPLIES WITH THE IEEE 802.3AF/AT STANDARD AND SUPPLY POWER THROUGH THE NETWORK CABLE. 4 GIGABIT UPLINK PORTS ENSURE A SMOOTH TRANSMISSION FOR NVR OR UP-LINK ROUTERS. P124GH IS A MOST ECONOMICAL SOLUTION FOR HD SECURITY NETWORK.SPECIFICATION : INTERFACE 24*10/100MBPS POE PORTS(DATA/POWER), 4*10/100/1000M UPLINK RJ45 PORTS (DATA), 4*10/100/1000M UPLINK SFP SLOT PORTS, BASIC FUNCTION : FOLLOW IEEE 802.3 ETHERNET AND IEEE802.3U FAST ETHERNET PROTOCOL, SUPPORTS POE IEEE 802. 3AF/AT COMPLIANT POWERED DEVICE (PD), STORE-AND-FORWARD SWITCHING SCHEME, SUPPORT IEEE802.3X FULL DUPLEX AND BACKPRESSURE HALF DUPLEX, MAC ADDRESS AUTO-LEARNING & AUTO-AGING. STANDARDS : IEEE 802.3 10BASE-T ETHERNET, IEEE 802.3I 10BASE-T ETHERNET, IEEE 802.3U 100BASE-TX FAST ETHERNET, IEEE 802.3AF/AT, POWER OVER ETHERNET, IEEE 802.3X FLOW CONTROL. MODE NORMAL SWITCH MODE/EXTEND MOD. DATA TRANSFER RATE ETHERENT:10MBPS(HALF-DUPLEX)20MBPS(FULL-DUPLEX), FAST ENTHERENT:100MBPS(HALF-DUPLEX)200MBPS(FULL-DUPLEX). STORE & FORWARDING YES. SWITCHING CAPACITY 12.8G. MAC ADDRESS TABLE SIZE 16K. JUMBO FRAME 2048 BYTE. ENVIRONMENT OPERATION TEMPERATURE:0?~40?, STORAGE TEMPERATURE:-40?~70?, OPERATION HUMIDITY:10%~90% RH NON-CONDENSING, STORAGE HUMIDITY:5%~90% RH NON-CONDENSING. POWER INPUT POE. STANDARDS SINGLE PORT MAXIMUM POWER 30W, WHOLE SWITCH MAXIMUM POWER 320W. SUPPORT OVER-CURRENT,OVER-VOLTAGE AND SHORT-CIRCUIT PROTECTION. SUPPORT SOFT START OF HIGH POWER PD. SUPPORT SEQUENTIAL BOOT-UP POWER SUPPLY PIN:12+/36-, AC 110~240V 50/60HZ
