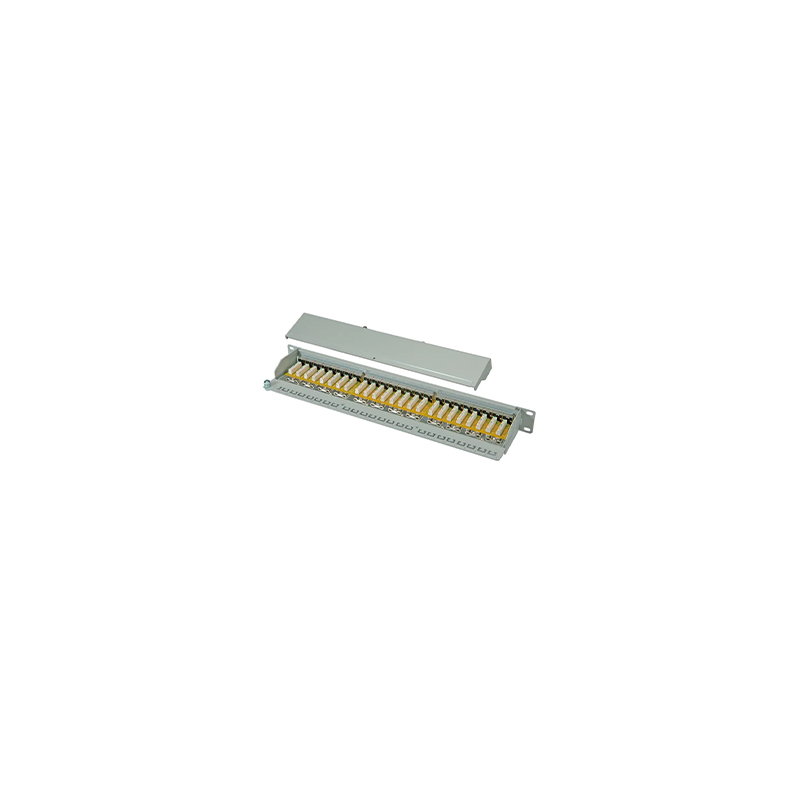

PATCH PANEL CAT6 24 PORT STP TN-PAN624S

MODEL : TN-PAN624SCAT 6 PATCH PANEL, SHIELDED, 1U, 24-PORT, 8P8C, GREY, 483 MM (19”)FUTURE-ORIENTED STANDARDS AND HIGH-END QUALITY FOR YOUR NETWORK. : STURDY PATCH PANEL WITH METAL HOUSING, COMPLETE SHIELDING OF HOUSING AND SHIELD CONTACT, CABLE INSTALLATION BY IDC-STRIPS, CENTRAL GROUNDING CONNECTOR, DIELECTRIC STRENGTH UP TO 1500 VDC (CONTACT/GROUND)TECHNICAL DETAILS: TRANSMISSION PROPERTIES: CATEGORY 6, AREA OF APPLICATION: UP TO 500 MHZ, 10GBASE-T, NORMS: ISO/IEC 11801 2ND ED., EN 50173-1, EIA/TIA 568-C, 802.3AF, 802.3AT POE+GENERAL PROPERTIES: SUITABLE FOR 483 MM (19”) CABINET MOUNTING, RJ45 FEMALE, 8P8C, CABLE INSTALLATION VIA LSA STRIPS, COLOR CODED ACCORDING TO EIA/TIA 568 A & B, CABLE FIXING WITH SMART CABLE TIES, CENTRAL GROUND CONNECTION, 360° SHIELD COVERAGE, INTERGRATED DUST COVER, PLASTIC LABEL FIELD, CAT 6A CLASS EA FOR UP TO 500 MHZMECHANICAL PROPERTIES: HOUSING MATERIAL: 1.5 MM GALVANIC COLD ROLLED STEEL, ACC. TO EN1.4301, UNS S30400, AISI 304 AND LMSAD110, RJ45 FEMALE MATERIAL: ABS UL 94V-0, RJ45 FEMALE CONTACT: TINNED PHOSPHOR BRONZE, 0.5 µ GOLD-PLATED CONTACT, RJ45 SHIELDING: TINNED BRONZE, LSA TERMINATION CLAMP: KRONE LSA+, UL 94V-2, ZINC PLATED PHOSPHOR BRONZE, GROUND WIRE: NOT INCLUDED, CONDUCTOR PLATE: FR4, UL 94V-0, TEHNOX
