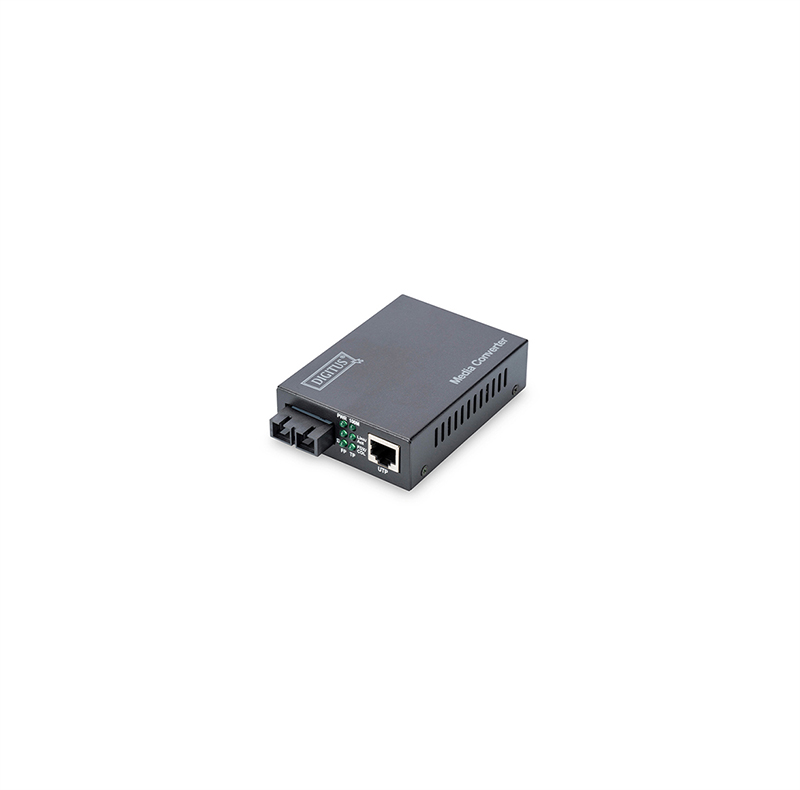

LWL MEDIA KONVERTER SC/RJ45 MULTIMOD 500M GIGABIT DN-82120-1

MODEL : DN-82120-1TECHNICAL DETAILS: TRANSFORMS WIRE BASED NETWORK MEDIA TO FIBER OPTIC, HIGH QUALITY AND EXCELLENT RELIABILITY, 10/100/1000BASE-TX TO 1000BASE-SX, CONNECTORS: 1X RJ45, 1X SC DUPLEX, DISTANCE UP TO 0.5KM, WAVELENGTH: 850NM, MULTIMODE DUAL FIBER, AUTOMATIC CABLE DETECTION – AUTO MDI / MDI-X FUNCTION, AUTO-NEGOTIATION OF FULL- AND HALF-DUPLEX, DIAGNOSTIC AND MONITORING LEDS FOR THE STATUS OF POWER, LINK AND ACT OF THE PORTS, SUITABLE FOR 50/125µM AND 62.5/125µM FIBER CABLES,TRANSMISSION POWER: MINIMUM -17 DBM, MAXIMUM -12 DBM, SENSITIVITY RECEIVING POWER: MINIMUM -20 DBM, SUPPORTED STANDARDS: IEEE 802.3 ETHERNET, IEEE 802.3U FAST ETHERNET, IEEE 802.3Z GIGABIT ETHERNET, 2MB DATA BUFFER, OPERATING TEMPERATURE: 0 TO 60°C, DIMENSIONS (L X W X H): 95MM X 70MM X 26MM, WEIGHT: 200G, STANDALONE CONVERTER WITH EXTERNAL POWER SUPPLY, INPUT SUPPLY VOLTAGE: 5V DC. PACKAGE CONTENT: MEDIA CONVERTER, QUICK INSTALLATION GUIDE, POWER ADAPTER.
