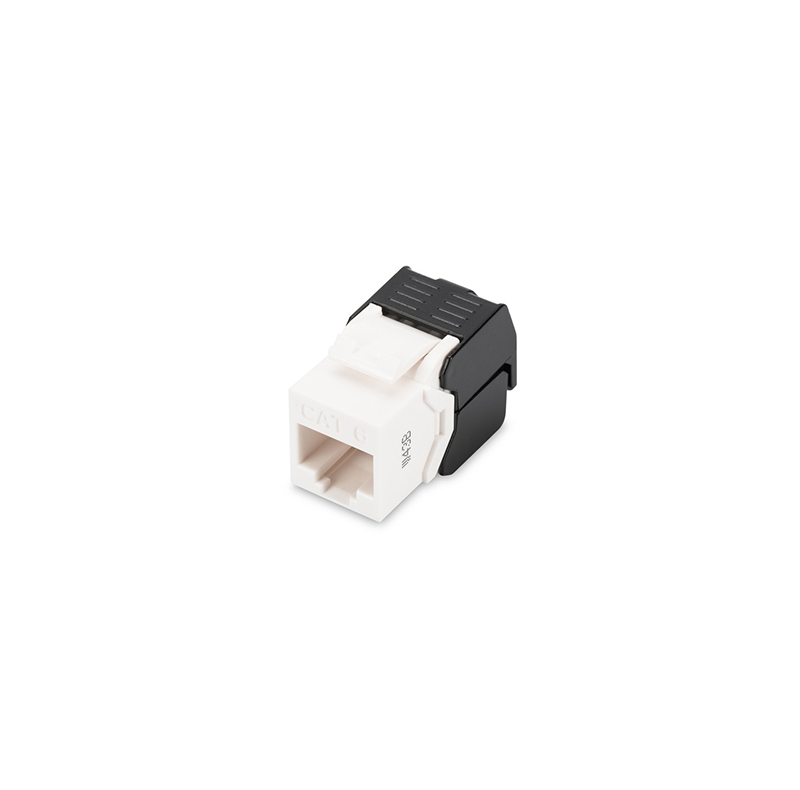

KONEKTOR RJ-45-LSA CAT6 UTP DN-93603

MODEL : DN-93603CAT 6 KEYSTONE JACK, UNSHIELDED RJ45 TO LSA, TOOL FREE CONNECTION, INCL. CABLE TIE. FUTURE-ORIENTED STANDARDS AND HIGH-END QUALITY FOR YOUR NETWORK. THE ITEM “DN-93603″ FROM DIGITUS® IS AN UNSHIELDED KEYSTONE MODULE WITH TOOL FREE INSTALLATION WHICH PROVIDES BEST PERFORMANCE AND LINK QUALITY FOR YOUR NETWORK. THE COMPACT DESIGN ALLOWS THE INSTALLATION OF 24 PIECES IN A ROW OF 483 MM (19″) 1U PANELS.TECHNICAL DETAILS : TRANSMISSION PROPERTIES: CATEGORY 6, AREA OF APPLICATION: UP TO 250 MHZ, 1GBASE-T, NORMS: ISO/IEC 11801 3RD ED., EN 50173-1, EIA/TIA 568-CGENERAL PROPERTIES: SUITABLE FOR 483 MM (19”) CABINET MOUNTING, RJ45 FEMALE, 8P8C, CABLE INSTALLATION VIA LSA STRIPS, COLOR CODED ACCORDING TO EIA/TIA 568 A & B, CABLE FIXING WITH SMART CABLE TIES, TOOL-FREE INSTALLATIONTECHNICAL PROPERTIES: RJ45 FEMALE MATERIAL: ABS UL 94V-0, RJ45 FEMALE CONTACT: TINNED PHOSPHOR BRONZE, 0.5 µ GOLD-PLATED CONTACT, LSA TERMINATION CLAMP: KRONE LSA+, UL 94V-2, ZINC PLATED PHOSPHOR BRONZE, CONDUCTOR PLATE: FR4, UL 94V-0PHYSICAL PROPERTIES: INSERTION FORCE: 30N MAX. (IEC 60603-7-5), RETENTION STRENGTH: 7.7 KG BETWEEN JACK AND PLUG, OPERATION TEMPERATURE: -20° C TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C), MATING CYCLES FEMALE: > 750 ACC. TO ISO/IEC 11801, IEC 60603-7-5, CLAMP: > 200 ACC. TO ISO/IEC 11801, IEC 60603-7-5, IDC WIRE SIZE: 22 – 26 AWG SOLID AND STRANDED CONDUCTOR, INSULATION RESISTANCE: > 500 MOHM, CONTACT RESISTANCE: < 20 MILLIOHM, DIELECTRIC STRENGTH: 1000 VDC (CONTACT/CONTACT), 1500 VDC (CONTACT/GROUND), COLOUR: WHITE, MODEL: BUS (JACK), CONNECTION TYPE: LSA, SCREENED: NO, CATEGORY: 6, SUITABLE FOR ROUND CABLE: YES, SUITABLE FOR FLAT CABLE: YES, SUITABLE FOR LITZ WIRE CONDUCTOR: YES, SUITABLE FOR SOLID CORE: YES, TYPE OF CONNECTOR: RJ45 8(8), AWG-RANGE: 26 … 22, SPECIAL TOOL NECESSARY: NO
