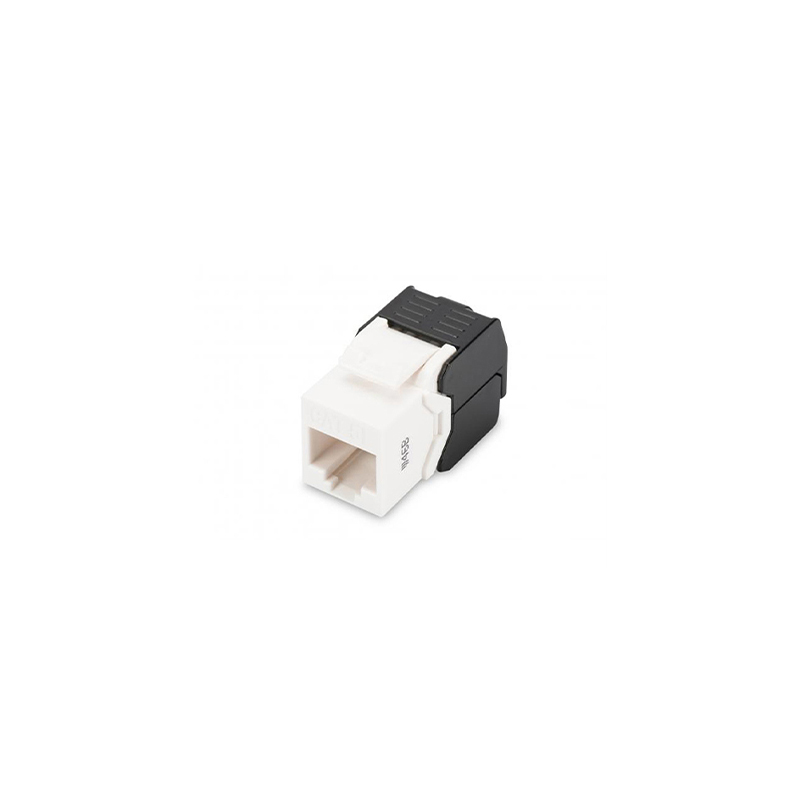

KONEKTOR RJ-45-LSA CAT5E UTP DN-93502

MODEL : DN-93502SPECIFICATION : TRANSMISSION PROPERTIES: CATEGORY 5E, AREA OF APPLICATION: UP TO 100 MHZ, 10/100BASE-T, 1GBASE-T, NORMS: ISO/IEC 11801 3RD ED., EN 50173-1, EIA/TIA 568-C. GENERAL PROPERTIES: SUITABLE FOR 483 MM (19”) CABINET MOUNTING, RJ45 FEMALE, 8P8C, CABLE INSTALLATION VIA LSA STRIPS, COLOR CODED ACCORDING TO EIA/TIA 568 A & B, CABLE FIXING WITH CABLE TIE, TOOL-FREE INSTALLATION. TECHNICAL PROPERTIES: RJ45 FEMALE MATERIAL: ABS UL 94V-0, RJ45 FEMALE CONTACT: TINNED PHOSPHOR BRONZE, 0.5 µ GOLD-PLATED CONTACT, LSA TERMINATION CLAMP: KRONE LSA+, UL 94V-2, ZINC PLATED PHOSPHOR BRONZE, CONDUCTOR PLATE: FR4, UL 94V-0. PHYSICAL PROPERTIES: INSERTION FORCE: 30N MAX. (IEC 60603-7-5), RETENTION STRENGTH: 7.7 KG BETWEEN JACK AND PLUG, OPERATION TEMPERATURE: -20° C TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C), MATING CYCLES FEMALE: > 750 ACC. TO ISO/IEC 11801, IEC 60603-7-5, CLAMP: > 200 ACC. TO ISO/IEC 11801, IEC 60603-7-5, IDC WIRE SIZE: 22 – 26 AWG SOLID AND STRANDED CONDUCTOR, INSULATION RESISTANCE: > 500 MOHM, CONTACT RESISTANCE: < 20 MILLIOHM, DIELECTRIC STRENGTH: 1000 VDC (CONTACT/CONTACT), 1500 VDC (CONTACT/GROUND), MODEL: BUS (JACK), TYPE OF CONNECTOR: RJ45 8(8), SCREENED: NO, CATEGORY: 5E, CONNECTION TYPE: LSA, SPECIAL TOOL NECESSARY: NO, SUITABLE FOR ROUND CABLE: YES, SUITABLE FOR FLAT CABLE: YES, SUITABLE FOR LITZ WIRE CONDUCTOR: YES, SUITABLE FOR SOLID CORE: YES, COLOUR: WHITE
