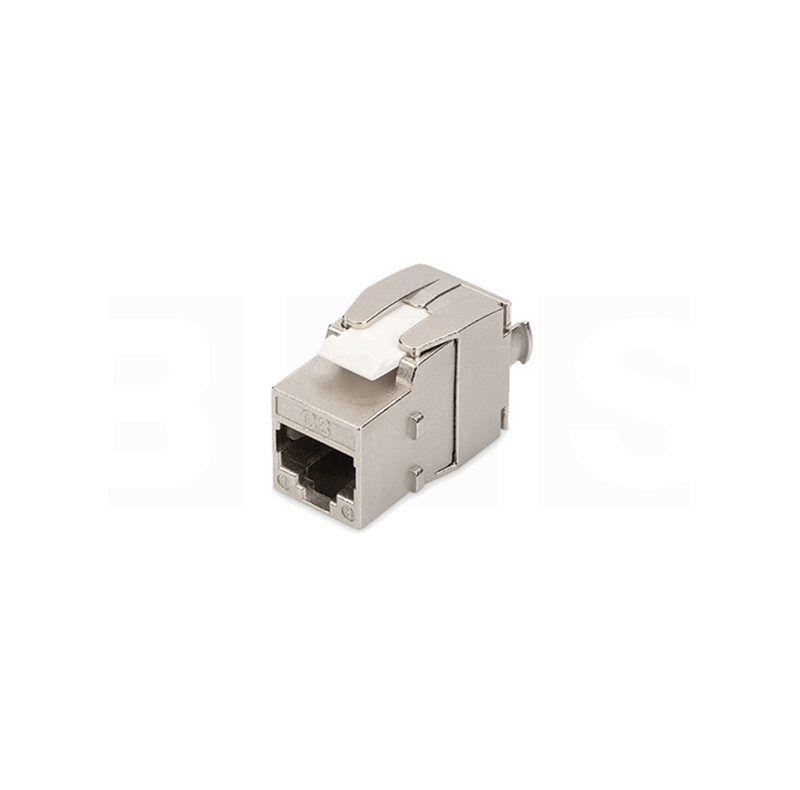

KONEKTOR RJ-45-LSA CAT 8.1 OKLOPLJENI DN-93815

MODEL: DN-93815DIGITUS CAT.8.I KEYSTONE MODULE, SHIELDED, TOOL FREE. 25/40GBASE-TRANSMISSION SPEED IN PERMANENT LINK UP TO 24 M AND CHANNEL LINK UP TO 30 M. ESPACIALLY FOR TOR AND MOR CABLING IN THE DATA CENTER. 25/40GBASE-T, 2000 MHZ, TOOL-FREE CONNECTION, 4PPOE.THE ARTICLE “DN-93815” OF THE BRAND DIGITUS® IS A SHIELDED CAT 8.I KEYSTONE MODULE WITH TOOL-FREE MOUNTING CONNECTION THAT PROVIDES EXCELLENT PERFORMANCE AND CONNECTION QUALITY FOR YOUR NETWORK. THE COMPACT DESIGN ALLOWS A SERIES INSTALLATION OF 24 UNITS IN 483 MM (19”) 1U PANELS. IT CONFORMS TO CATEGORY 8.I / 25/40GBASE-T ISO/IEC 11801TECHNICAL DETAILS: TRANSMISSION PROPERTIES: CATEGORY 8 CLASS I, AREA OF APPLICATION: UP TO 2000 MHZ, 25/40GBASE-T, NORMS: ISO/IEC 11801 3RD ED., EN 50173-1, EIA/TIA 568-C, 802.3AF, 802.3AT, 8023.BT (POE, POE+, 4PPOE).GENERAL PROPERTIES: SUITABLE FOR PATCH PANELS AND MOUNTING OUTLETS, RJ45-FEMALE, 8P8C, CABLE INSTALLATION VIA IDC-STRIPS, COLOR CODED ACCORDING TO EIA/TIA 568 A & B, TOOL-FREE INSTALLATION, 360° SHIELD COVERAGE, TECHNICAL PROPERTIES:HOUSING MATERIAL: ZINC DIE-CAST, NICKEL-PLATED, RJ45 FEMALE MATERIAL: ABS UL 94V-0, RJ45 FEMALE CONTACT: TINNED PHOSPHOR BRONZE, 0.5 µ GOLD-PLATED CONTACT, RJ45 SHIELDING: NICKEL-PLATED BRONZE, IDC-STRIP: KRONE LSA+, UL 94V-2, ZINC PLATED PHOSPHOR BRONZE, CONDUCTOR PLATE: FR4, UL 94V-0, PHYSICAL PROPERTIES: INSERTION FORCE: 30N MAX. (IEC 60603-7-81), RETENTION STRENGTH: 7.7 KG BETWEEN JACK AND PLUG, OPERATION TEMPERATURE: -20° C UP TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C), MATING CYCLES FEMALE:> 750 ACC. TO ISO/IEC 11801, IEC 60603-7-81, CLAMP: > 200 ACC. TO ISO/IEC 11801, IEC 60603-7-81, WIRE SIZES: 22-26 AWG SOLID AND STRANDED CONDUCTOR, INSULATION RESISTANCE: > 500 MOHMCONTACT RESISTANCE: < 20 MILLIOHM, DIELECTRIC STRENGTH: 1000 VDC (CONTACT/CONTACT), 1500 VDC (CONTACT/GROUND), COLOUR: SILVER, MODEL: BUS (JACK), CONNECTION TYPE: INSULATION DISPLACEMENT, SCREENED: YES, CATEGORY: OTHER, SUITABLE FOR ROUND CABLE: YES, SUITABLE FOR FLAT CABLE: NO, SUITABLE FOR LITZ WIRE CONDUCTOR: YES, SUITABLE FOR SOLID CORE: YES, TYPE OF CONNECTOR: RJ45 8(4), AWG-RANGE: 26 … 22, SPECIAL TOOL NECESSARY: NO. PACKAGE CONTENT: KEYSTONE MODULE, CABLE TIE.
