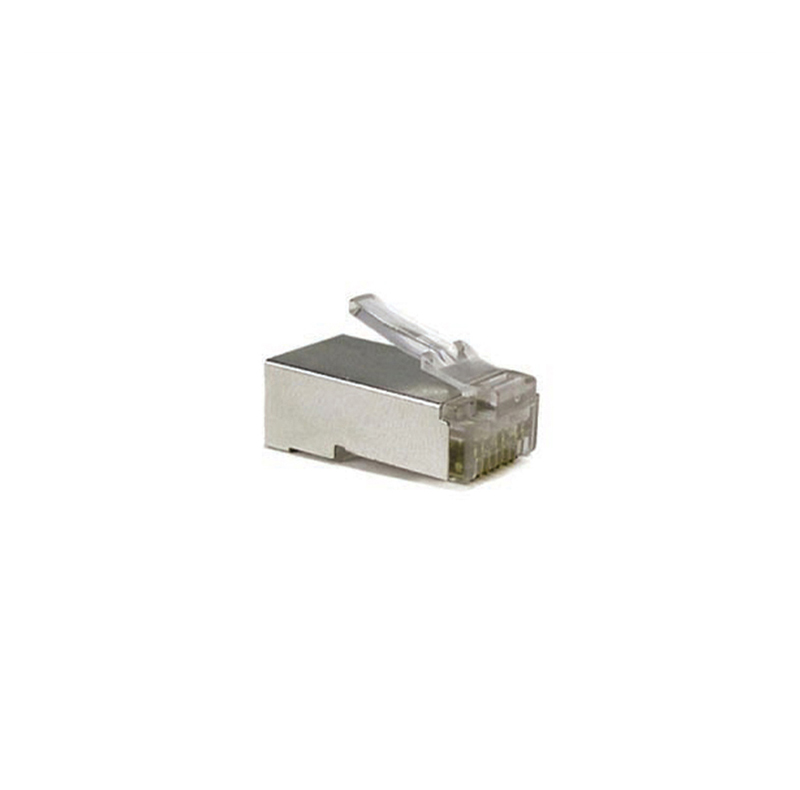

KONEKTOR CAT6 RJ-45 OKLOPLJENI AK-219603

MODEL : AK-219603CAT 6 MODULAR PLUG, 8P8C, SHIELDED FOR ROUND CABLE, TWO-PARTS PLUGEASY ASSEMBLY BY MODULAR CRIMPING TOOL DN-94004TECHNISCHE DETAILS : LAYOUT PERFORMANCE: CAT 6, 1GBASE-T, AREA OF APPLICATION: PATCH CABLE ASSEMBLY, NORMS: ISO/IEC 11801 3RD ED., EN 50173-1, EIA/TIA 568-CGENERAL PROPERTIES: UL CERTIFIEDTECHNICAL PROPERTIES: MATING CYCLES FEMALE: > 750 ACC. TO ISO/IEC 11801, IEC 60603-7-5, MATERIAL CONNECTOR BODY: POLYCARBONAT, CLEAR, CONNECTOR CONTACT: PHOSPHOR BRONZE, BRASS 0.6 µ GOLD-PLATED FLAMMABILITY: UL 94V-2PHYSICAL PROPERTIES: INSERTION FORCE: ? 30 N, DIAMETER CU-CONDUCTOR: AWG (27/7 … 24/7), OPERATING TEMPERATURE: -40 °C TO +80 °C, CURRENT CARRYING CAPACITY: 1A -1.5A AT 50 °C, COLOUR: TRANSPARENT, MODEL: PLUG, CONNECTION TYPE: CRIMP, SCREENED: YES, CATEGORY: 6, SUITABLE FOR ROUND CABLE: YES, SUITABLE FOR FLAT CABLE: NO, SUITABLE FOR LITZ WIRE CONDUCTOR: YES, SUITABLE FOR SOLID CORE: NO, TYPE OF CONNECTOR: RJ45 8(8), AWG-RANGE: 24 … 27, SPECIAL TOOL NECESSARY: YES, LOGISTIK
